HPE Apollo 4200 Gen10
The HPE Apollo 4200 Gen10 Server offers an architecture optimized for Big Data Analytics, Software-Defined Storage, backup and archive, and other data storage-intensive workloads. It's unique, easily serviceable 2U design saves data center space with up to 28 LFF or 54 SFF hot plug drives. It delivers accelerated performance with superior bandwidth and balanced architecture, Intel Xeon Processors, and NVMe-connected SSDs.
The focus on security extends from FIPS 140-2 Level 1 validated storage controllers down to the system silicon level, taking full advantage of HPE innovations in firmware protection, malware detection, and recovery. With HPE GreenLake Flex Capacity and HPE Financial Services, you can combine the economic agility benefits of consumption-based IT with the performance and security of on-premise.
What's New for Apollo 4200 Gen10
- Supports Intel Xeon Scalable Processor Family.
- Optional rear storage upgrade to support up to 6 SFF NVMe solid state drives (SSDs).
- Higher bandwidth and more balanced system architecture design, and without trade-offs between drive bays and I/O slots.
- Firmware-level security and optional chassis intrusion options.
- Flexible HPE Smart Array Gen10 Controllers support and encryption features to meet different performance requirements for storage solutions.
- Support for daisy-chaining of out-of-band management network ports.
Ultra-dense and Rack Scale
Highest data storage density in a unique, easier to service 2U standard rack depth chassis.
Up to 28 Large Form Factor (LFF) or 54 Small Form Factor (SFF) hot-plug drives and without I/O compromises. Up to 392 TB in 2U space with 14 TB LFF drives support for the LFF models.
Support for daisy-chaining of out of band management network ports for 95% reduction in management network port consumption per 42U rack.
Know your Server - CTO Configuration Support
HPE Apollo 4200 Gen10 Base Knowledge

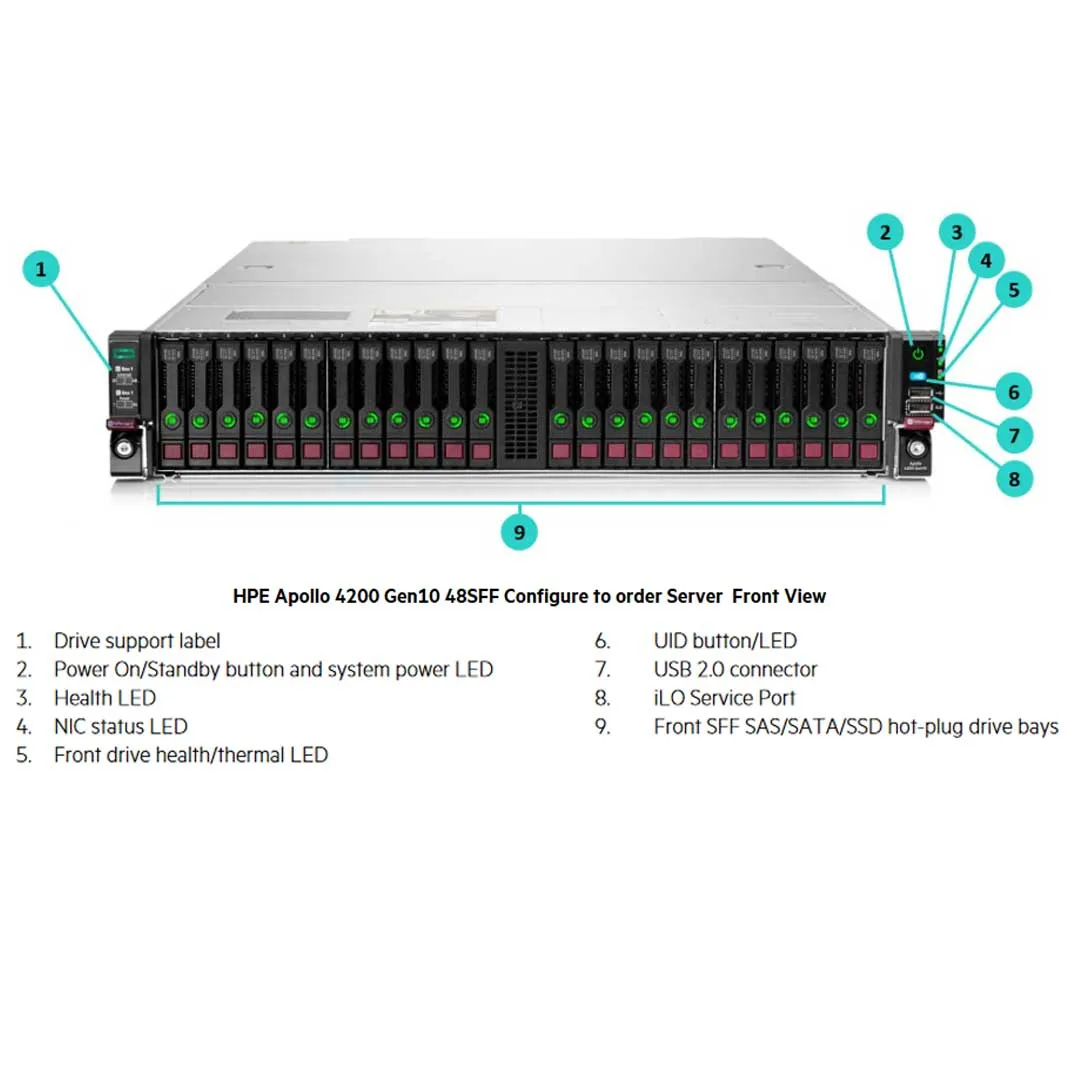

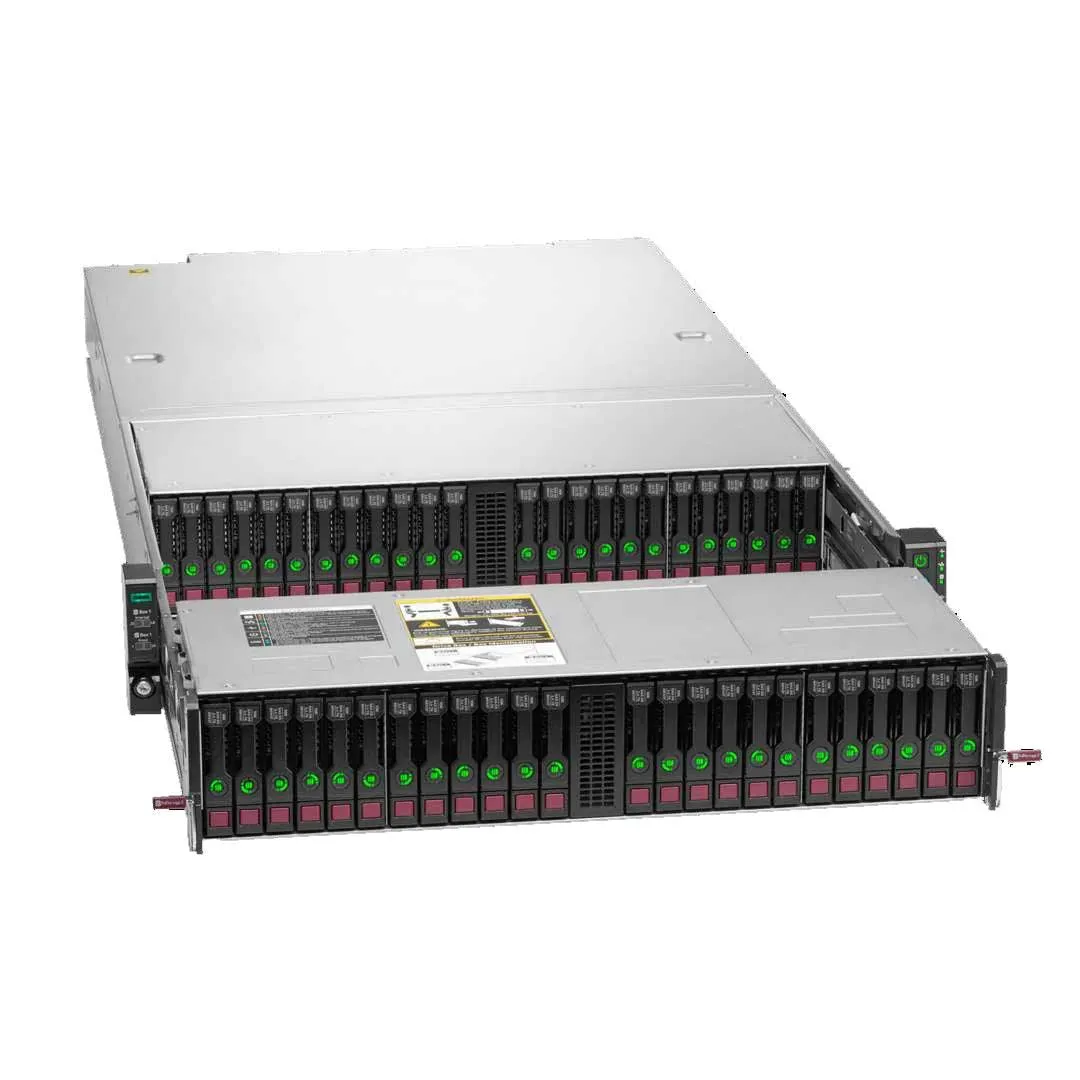

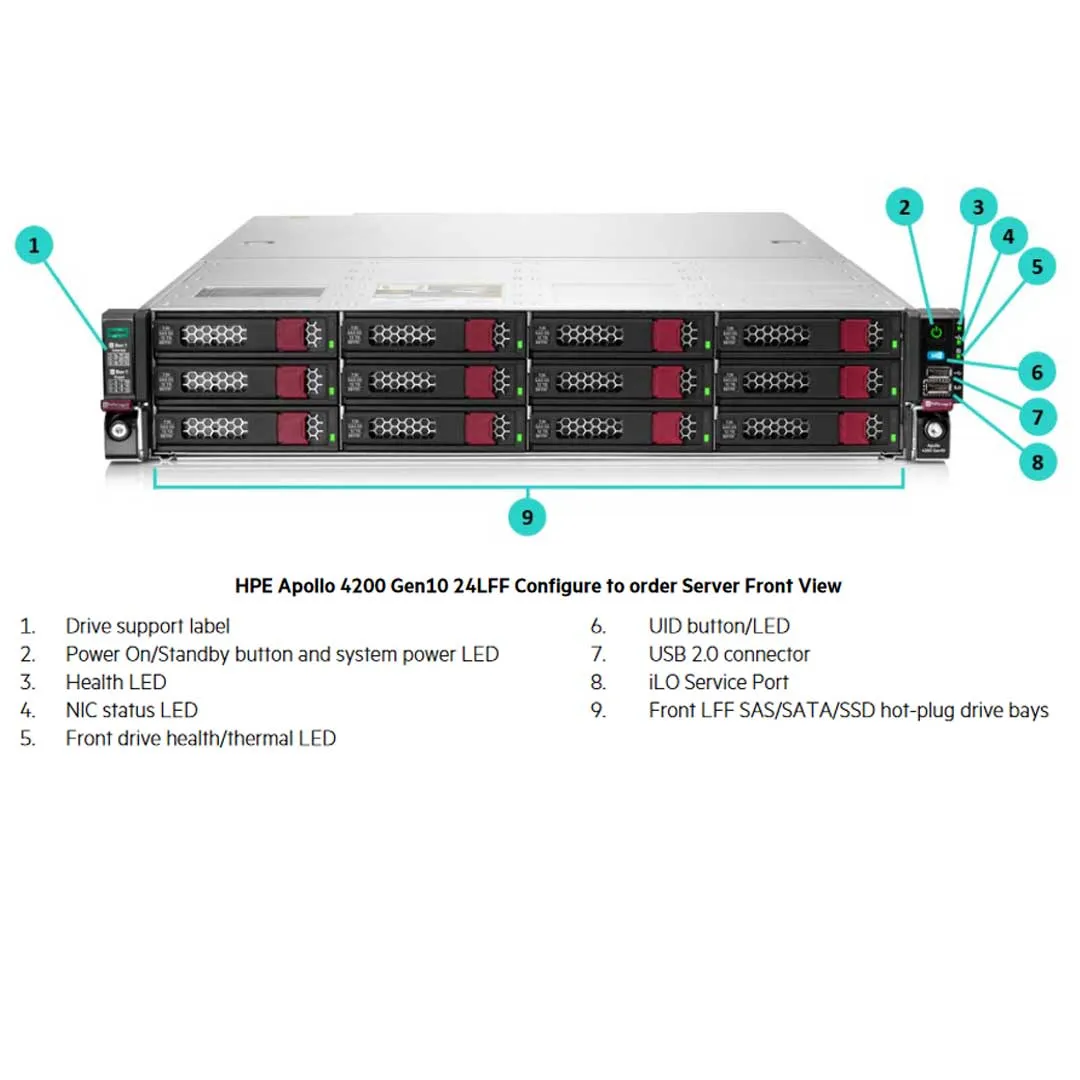

The Apollo 4200 has two rows of drives, one behind the other. This system will appear to have 12 LFF or 24 SFF drives. But with two rows of drives, the chassis actually holds 24LFF or 48SFF. The mixing of the drive form factor is not supported. The front 2 drive bay have to be the same (all SFF or all LFF). This Apollo 4200 Gen10 supports rear drive options. The Rear Drive Cages are 4 LFF Drives (only on the 24LFF chassis) or 6 SFF NVMe SSD, 6 SFF SAS/SATA, and the last option provides Dual FHHL PCIe Slots. The 2 SFF 2 FHHL Riser kit, when this kit is installed, you'll also need the HPE Apollo 4200 P824i-p Enablement Kit (P11274-B21).

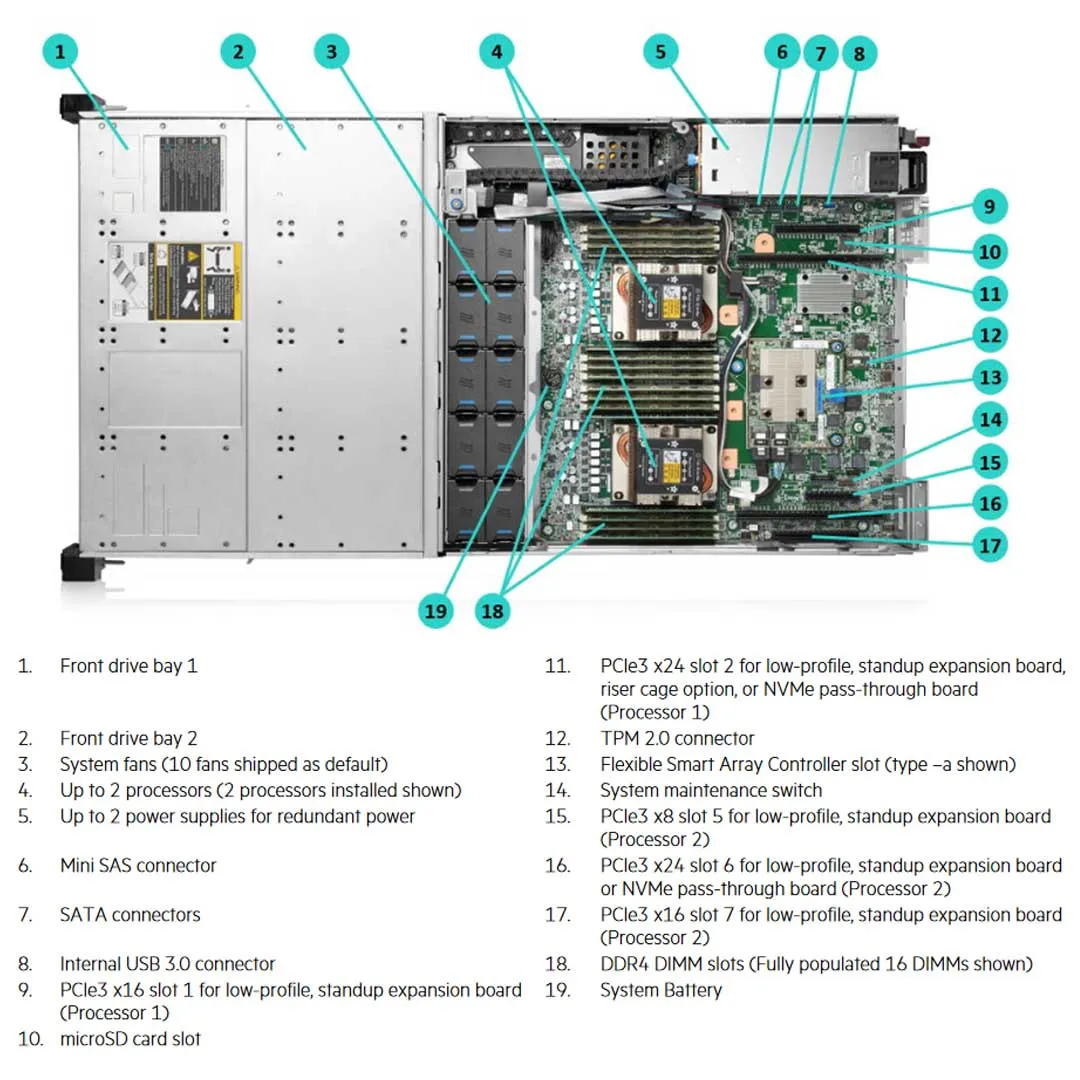

This Chassis holds 1 HPE ProLiant XL420 Gen10 motherboard. This motherboard holds 2 Processors Mixing of 2 different processor models is NOT allowed The Apollo 4200 Gen10 has up to 16 DIMM Slots on a two-socket configuration. The motherboard can support HPE Persistent Memory featuring Intel® Optane™ DC persistent memory. This memory is only supported with select 2nd generation Intel Xeon Scalable Series. Mixing RDIMM and LRDIMM memory is not supported.
If any of the rear drive cages are installed, you will need to also install one of the following storage controllers. HPE 2nd Cage FIO Controller Mode for Rear Storage (813546-B21), HPE Software RAID FIO Controller Mode for Rear Storage (P09655-B21), or HPE Smart Array E/P SR FIO Controller Mode for Rear Storage (P09656-B21).
Finally, if you install the 6SFF SAS/SATA Rear drive cage you must install the HPE Smart Array E/P SR FIO Controller Mode for Rear Storage (P09656-B21).
| Rear Drive Cages Support Matrix | P14010-B21 | P07250-B21 | P07943-B21 | P0724B-21 | |
|---|---|---|---|---|---|
| 6SFF SAS/SATA Rear Drive Cage Kit | 6SFF NVMe Rear Drive Cage Kit | 4LFF Rear Drive Cage Kit | 2SFF Rear Drive Cage and 2 Full Height Half Length Riser Kit | ||
| P07244-B21 | HPE Apollo 4200 Gen10 24LFF | Supported | |||
| P07246-B21 | HPE Apollo 4200 Gen10 48SFF | Supported | Supported | Not Supported | Supported |
HPE Apollo 4200 Gen10 Maximum Internal Storage
| Storage | Capacity | Configuration |
|---|---|---|
| Hot Plug SFF SAS HDD | 129.6 TB | 48 6 x 2.4 TB (with rear-drive cage option) |
| Hot Plug SFF SATA HDD | 108 TB | 48 6 x 2.0 TB (with rear-drive cage option) |
| Hot Plug SFF SAS SSD | 829.44 TB | 48 6 x 15.36 TB (with rear-drive cage option) |
| Hot Plug SFF SATA SSD | 414.72 TB | 48 6 x 7.68 TB (with rear drive cage option) |
| Hot Plug LFF SAS HDD | 560 TB | 24 4 x 20 TB (with rear-drive cage option) |
| Hot Plug LFF SATA HDD | 560 TB | 24 4 x 20 TB (with rear-drive cage option) |
| Hot Plug LFF SAS SSD | 107.52 TB | 24 4 x 3.84 TB (with rear-drive cage option) |
| Hot Plug LFF SATA SSD | 215.04 TB | 24 4 x 7.68 TB (with rear-drive cage option) |
| Hot Plug SFF NVMe PCIe SSD (Rear drive cage only) | 92.16 TB | 6 x 15.36 TB NVMe |
HPE Apollo 4200 Gen10 NVMe Drives
If you install the rear drive cage for the 6 NVMe drives. You will also need a card that can support these drives. HPE NVMe CPU2 x6 FIO Controller Mode for Rear Storage (P09657-B21) or HPE NVMe CPU1 x4/CPU2 x2 FIO Controller Mode for Rear Storage (P09658-B21). When no controller mode is selected, all 6 SFF NVMe will be connected to processor 1 through PCIe slot 2. When HPE NVMe CPU2 x6 FIO Controller Mode for Rear Storage (P09657-B21) is selected, all 6 SFF NVMe SSDs will be connected to processor 2 through PCIe slot 6.
HPE Apollo 4200 Gen10 PCI Risers

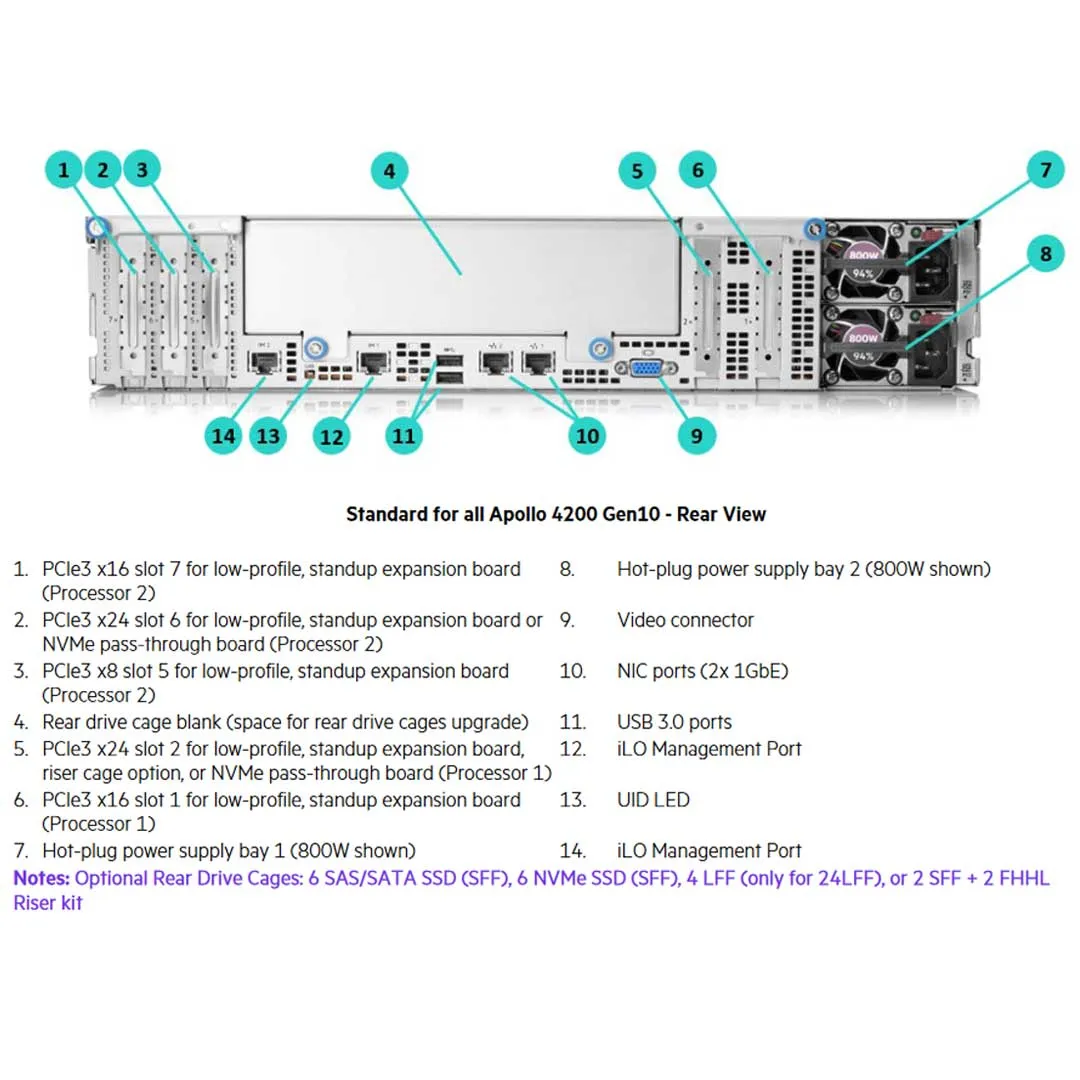

There are 7 Total PCIe slots but Slots 4 and 5 are only available with the rear riser cage installed (P07248-B21). This Riser cage will provide 2 extra SFFs and 2 FHHL PCIe slots. When this Riser cage is installed PCIe slot 2 will not be available. This slot is where the riser cage sits.
There are a few more rear drive options, read the section above or take a peek at the Specs Manual below for more details.
| Default Expansion Slots | Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
|---|---|---|---|---|---|---|
| 1 | PCIe 3.0 | x16 | x16 | CPU1 | Low Profile | |
| 2 | PCIe 3.0 | x24 | x24 | CPU1 | Low Profile | |
| 5 | PCIe 3.0 | x8 | x8 | CPU2 | Low Profile | |
| 6 | PCIe 3.0 | x24 | x24 | CPU2 | Low Profile | |
| 7 | PCIe 3.0 | x16 | x16 | CPU2 | Low Profile | |
| 2 SFF 2FHHL Riser Kit | Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
| 3 | PCIe 3.0 | x16 | x16 | CPU1 | Full-height; half length | |
| 4 | PCIe 3.0 | x8 | x8 | CPU1 | Full-height; half length |
HPE Apollo 4200 Gen10 Cooling
10 system fans shipped as standard. If the Rear NVMe drive cage is installed. 4 Extra fans will come with that kit and be installed in the rear.
HPE Apollo 4200 Gen10 Flex Slot your power!
Mixing of 2 different power supplies is NOT allowed.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
HPE Apollo 4200 Gen10 Lights Out! iLO
HPE iLO 5 ASIC.
HPE iLO with Intelligent Provisioning (standard) with Optional: iLO Advance and OneView
HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.
