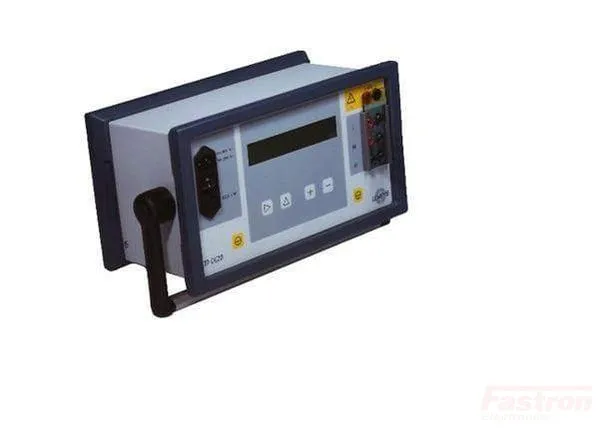

TP0620 Portable High Powered Semiconductor Tester

General Description

The TP 0620 is designed for easy and fast functional control of all major brands of power semiconductors in the lab or on site.

Features

With the TP 0620 you can measure

• Breakdown voltage VD-VR
• Leakage current ID - IR
• Forward voltage drop VF, VT

on IGBT - Diodes - Thyristors and other components.

Easy to manipulate and use in the lab or in the field by technicians and engineers.

TP062 contains a current generator, high voltage generator, a gate drive and internal measuring circuits.

Supplied with the necessary test leads, you don’t need anything else.

LCD Display in 5 languages, (English, French, German, Italian, Spanish) for : Test to be carried out - Parameters - Test results This is an extremely practical tool which will save you time in testing and reduce your costs. By using this professional tool instead of a laboratory bench set-up you can increase your efficiency. You can increase your proficiency by making reliable measurement and reduce repair time/down time by fast and accurate localization of faulty devices.

Characteristics

• Forward voltage drop VF- VT
• Breakdown voltage VD - VR
• Applied current : 1 - 600 A
• Applied current: 0.1 - 10 mA
• Voltage measure of : 0 - 10 V
• Voltage measurement : 50 - 2000V
• Go-no go test : limits 0.0 - 9.9 V Go-no go test : limits 50 - 1990V
• Leakage current ID - IR

Gate Drive Parameters

Applied voltage: 50 - 2000V VG :15V for firing, 0V for blocking

Measure of current: 0 - 10 mA

Ri, Gate drive internal resistance 68Ω.

Test go-no go : limits 0.00 - 9.90 mA

Imax = 200 mA

General Requirements

• Isolation 1 kV Test pulse frequency: 0.3 Hz.
• Power supply 85 - 264Vac 50/60Hz or 110 - 340VDC
• Tester weight 12lb - 5.5 kg, with box 24lb - 11kg
• Dimensions HxWxD 7.6’’ - 198mm x 14’’ - 357mm x 7’’ - 178mm Protection IP 20

The equipment has a multi-range power input for DC and ac-supplies. Optionally available is a complementary low voltage DC-supply.

Comes with Power and Test Cables and Operational Manual
